Building Import-Driven Instrumentation for otelc

In my last post, I wrote about how I got into OpenTelemetry Go Compile Instrumentation and applied to LFX Mentorship. This one is about the actual work, what I built, the bugs I ran into, and how I fixed them.

Why otelc specifically?

I’m interested in both low-level tooling and observability, and otelc sits right at the intersection of the two. That’s really what pulled me toward this project instead of OpenTelemetry in general.

What is otelc, briefly?

otelc instruments Go code at compile time. Instead of requiring developers to manually instrument their code, otelc rewrites the program during compilation so that instrumentation is inserted automatically. The rest of this post assumes a little bit of that context, so here’s the short version before I get into what I actually worked on.

What I worked on

Import-driven instrumentation selection

otelc ships with a built-in set of instrumentations, each made up of modules and rule files. But there was no good way to bring in third-party instrumentations easily, and no way to disable a built-in instrumentation at compile time (you could only toggle them at runtime).

This came up in a SIG meeting, and was tracked in this issue. Orchestrion, Datadog’s own compile-time instrumentation tool for Go, already had a solution: an orchestrion.tool.go file that developers could use to declare instrumentation explicitly. We used that as a starting point and built something similar for otelc.

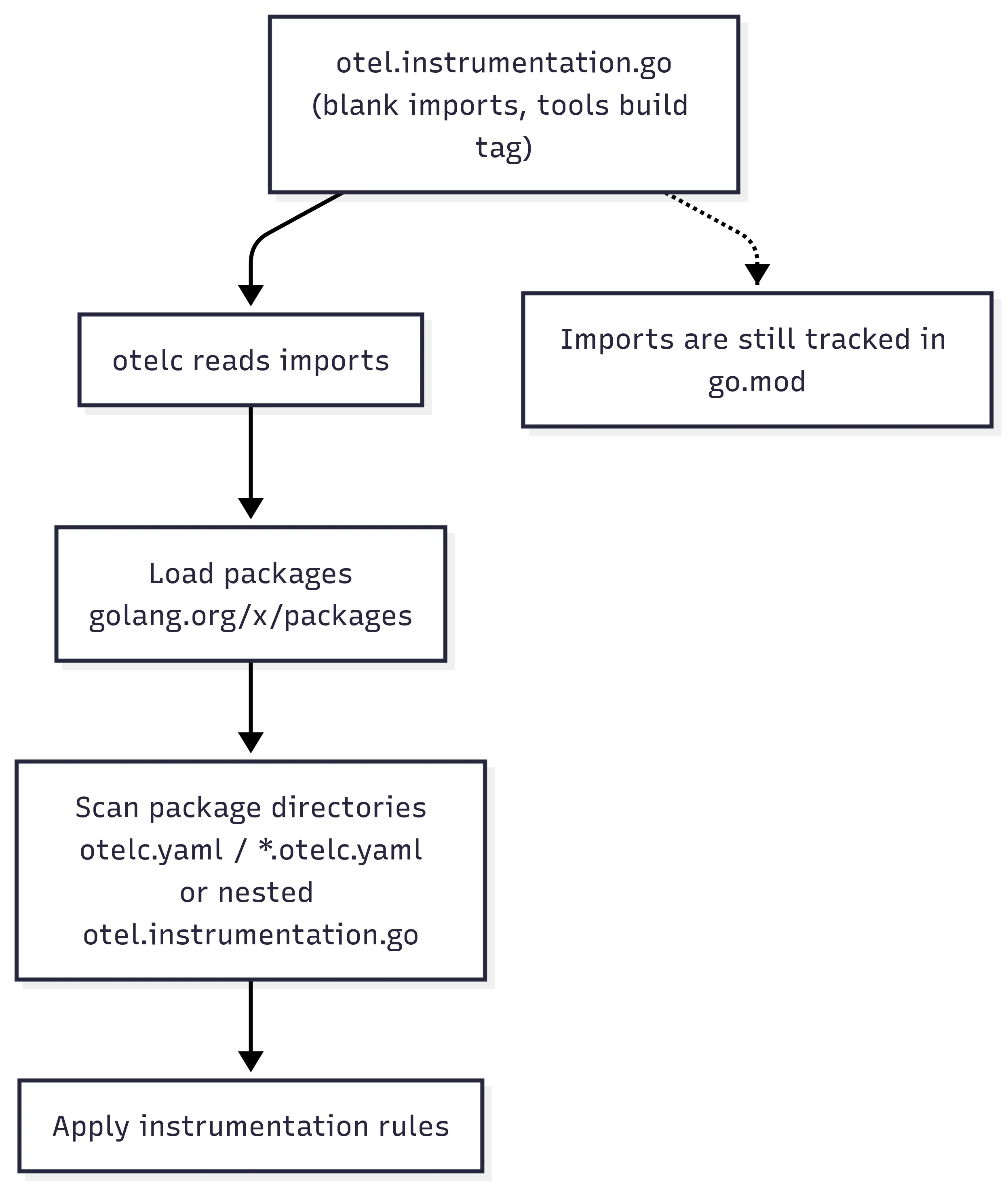

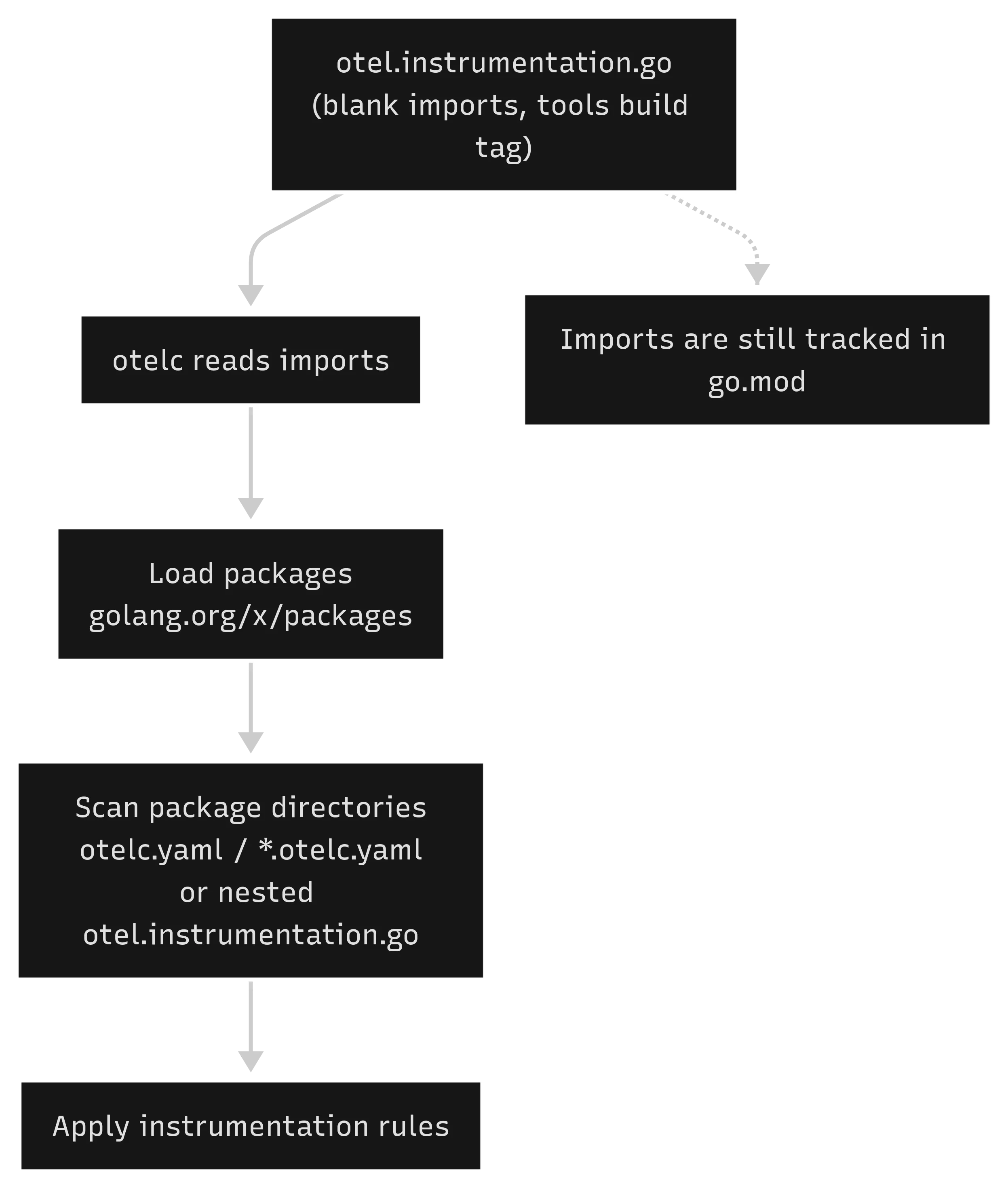

The mechanism works like this: otelc looks for a file (otel.instrumentation.go, or otelc.tool.go as an alias) containing a list of blank imports. This file isn’t included in the actual build (it’s marked with a tools build tag, following the standard tools.go convention), but Go still tracks its imports in go.mod. otelc reads this file before building, loads the imported packages using golang.org/x/tools/go/packages, and scans each package’s directory for rule files (otelc.yaml, *.otelc.yaml) or another otel.instrumentation.go, allowing instrumentation packages to bundle together other instrumentation packages. Those rule files define how to instrument that package.

Here’s roughly what one of these files looks like in practice:

//go:build tools

package tools

import (
    _ "go.opentelemetry.io/otelc/instrumentation/net/http/client"
    _ "..."
)

The naming itself was already decided in a UX design document from before I joined the project, so that part was settled. I’d originally written this as a single PR, but it ended up being around 5,000 lines, which was far too large to review properly. Reviewers asked me to split it into smaller PRs, so I did. During that process, one review comment asked for an integration test covering a recursive instrumentation path, where one otel.instrumentation.go file references another. Writing that test surfaced a real bug: otelc was only looking for hook code files inside its own embedded bundle, not in packages loaded from external import paths. If that comment hadn’t come up, this bug might have gone unnoticed for a while. I fixed it by updating otelc to load hook code through golang.org/x/tools/go/packages as well. The implementation landed across a couple of PRs: the hook loading fix in #617, followed by the core import-driven instrumentation support in #612.

The initInstrumentation deadlock

Every instrumentation in otelc followed the same rough pattern: lazily set up the OTel SDK (if it wasn’t already running) and start runtime metrics, guarded by a sync.Once.

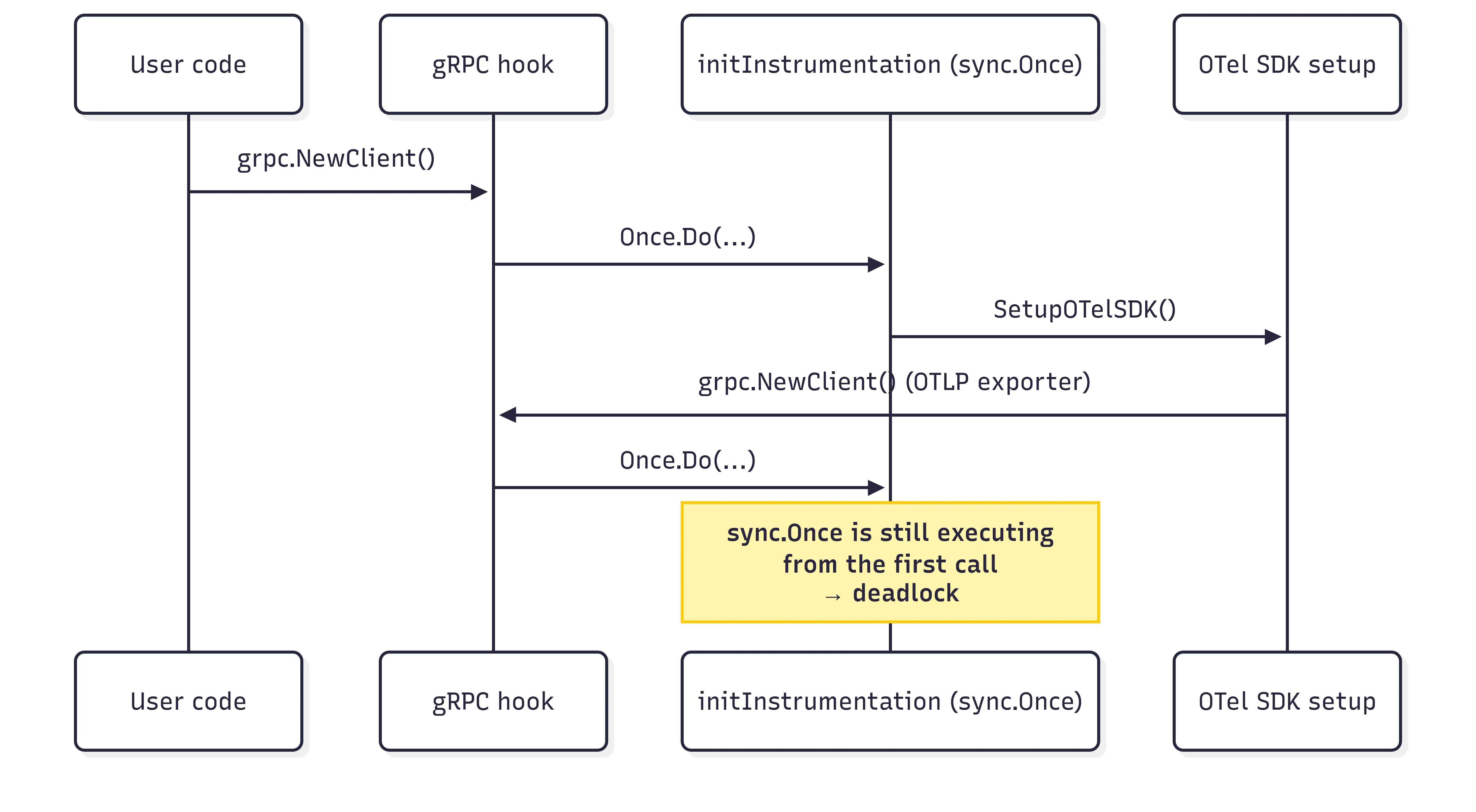

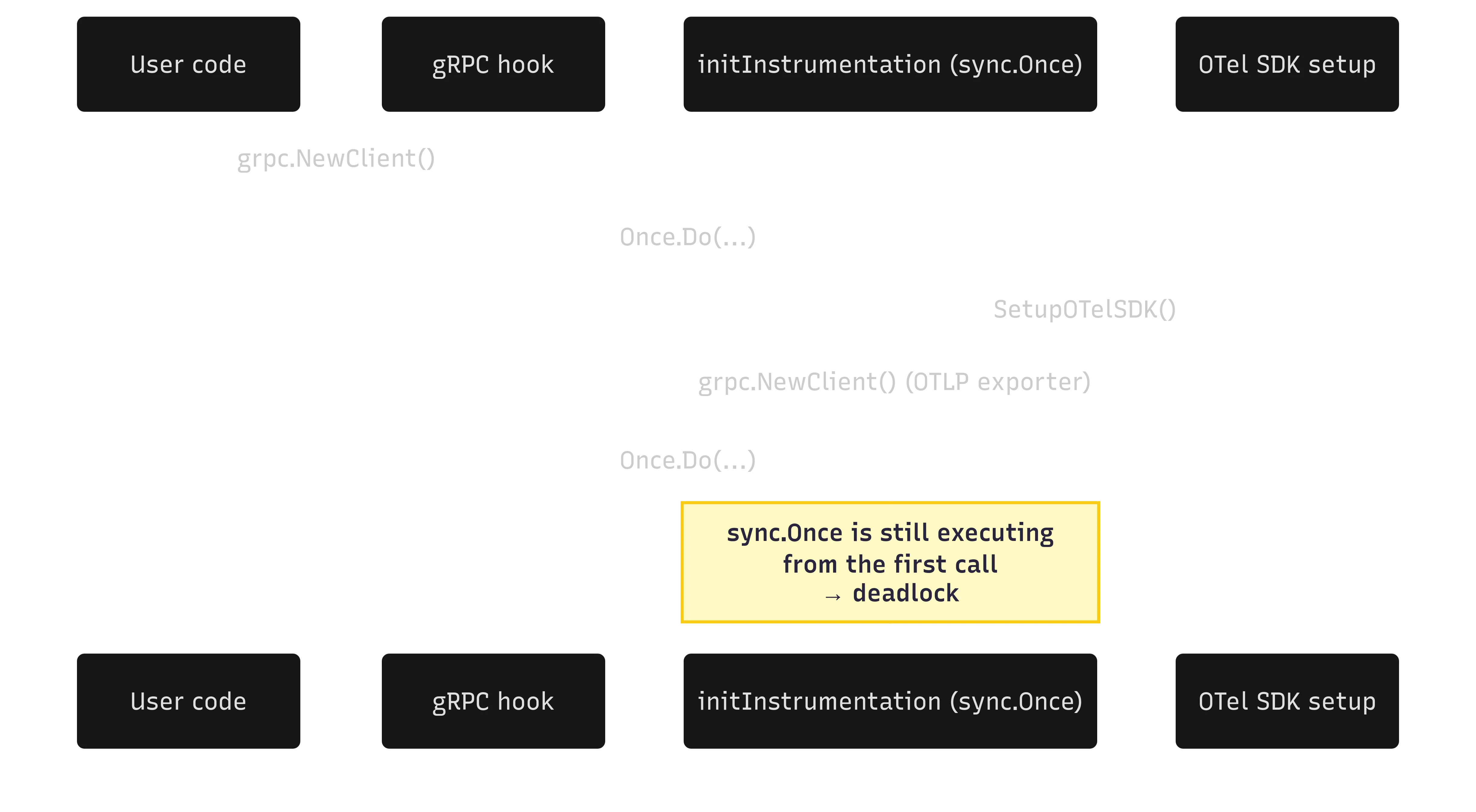

This caused a deadlock. Here’s what happened: when a user’s code called grpc.NewClient, the gRPC instrumentation hook would call initInstrumentation, which runs inside a sync.Once.Do. If the user had their OTLP exporter configured to use gRPC, the SDK setup inside that same Once.Do would itself call grpc.NewClient, which tried to call initInstrumentation again, re-entering the same Once.Do block that hadn’t finished running yet. That’s a deadlock.

My first fix was simpler than it should have been: check the value of OTEL_EXPORTER_OTLP_ENDPOINT and skip instrumentation for any grpc.NewClient call pointed at that endpoint. That worked for the obvious case, but it broke down as soon as the two values didn’t match exactly, since the values could point at the same collector without matching as strings at all:

endpoint = "http://collector-localhost:4317"
target   = "localhost:4317"

This kept happening because I was relying on dumb string comparison to detect whether the two calls pointed at the same target. Instead of trying to make that comparison smarter, I took a different approach.

The fix was to stop having every instrumentation independently lazy-init the SDK. Instead, I moved that startup logic out into a single injected rule that runs once in the user’s main package, before any instrumentation hook runs. Every hook can now assume the SDK is already set up by the time it runs, so there’s no endpoint comparison to get wrong in the first place. It also meant third-party rules don’t need to follow the old init pattern at all, they can simply assume the SDK is already available, which fit nicely with the import-driven instrumentation work happening around the same time. Users who want to bring their own tracer or meter provider can also remove this rule and wire up their own. The implementation landed in #625.

otelc pin and auto-pinning

The second thing I worked on was the otelc pin command, which generates an otel.instrumentation.go file based on a user’s dependency graph, inspired by Orchestrion’s own pin command. Orchestrion’s version points to a single package that bundles every integration together. I changed this so otelc pin looks at the user’s actual dependencies and infers which instrumentations are relevant, rather than pulling in everything.

otelc pin also keeps the generated file clean by automatically removing imports that don’t resolve to any rule files (or other otel.instrumentation.go files). The result is an explicit list of the instrumentations that are actually relevant to the project.

Auto-pinning was also mentioned in the original issue, but initially I wasn’t convinced it was necessary. If a project didn’t have an otel.instrumentation.go file, otelc could simply fall back to its default instrumentations. Generating a temporary file just to represent that default set seemed like an unnecessary extra step.

While testing otelc against a project using an older version of gRPC, I ran into another problem. I already had a fix open for that problem, but auto-pinning addressed its underlying cause in a much cleaner way.

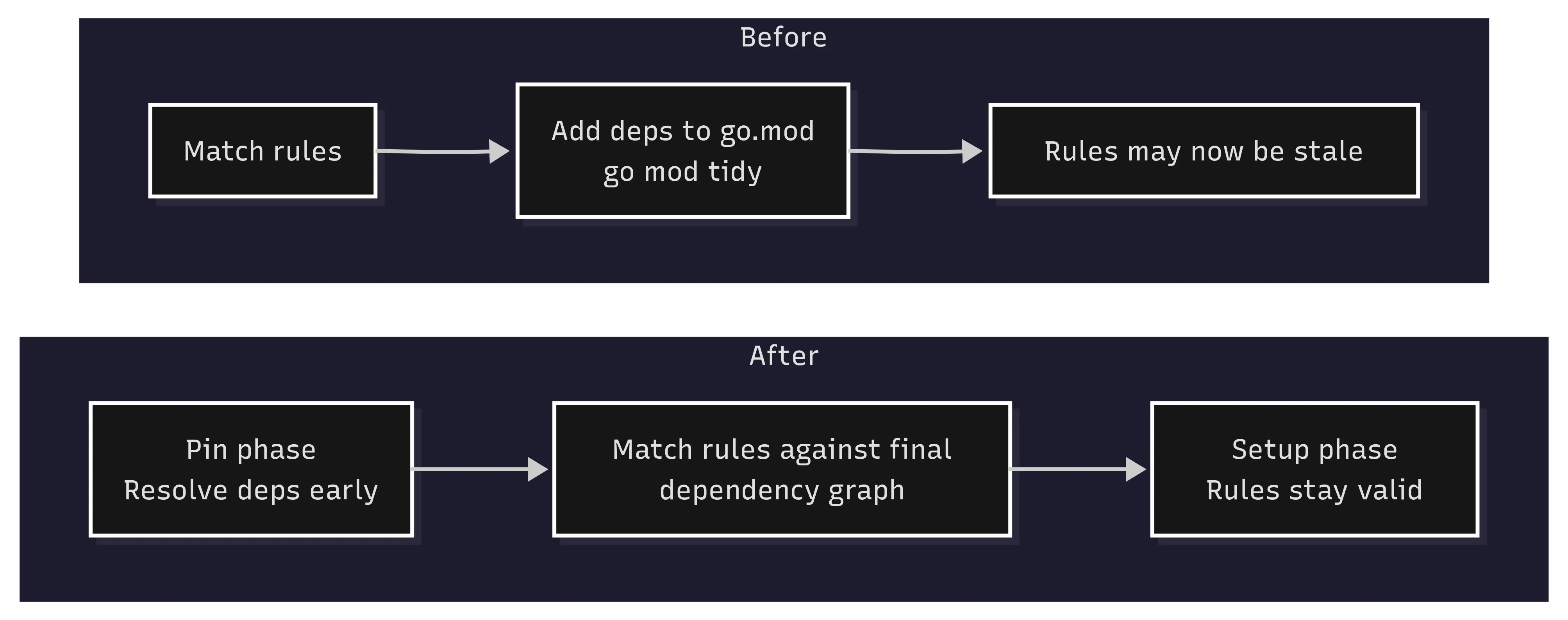

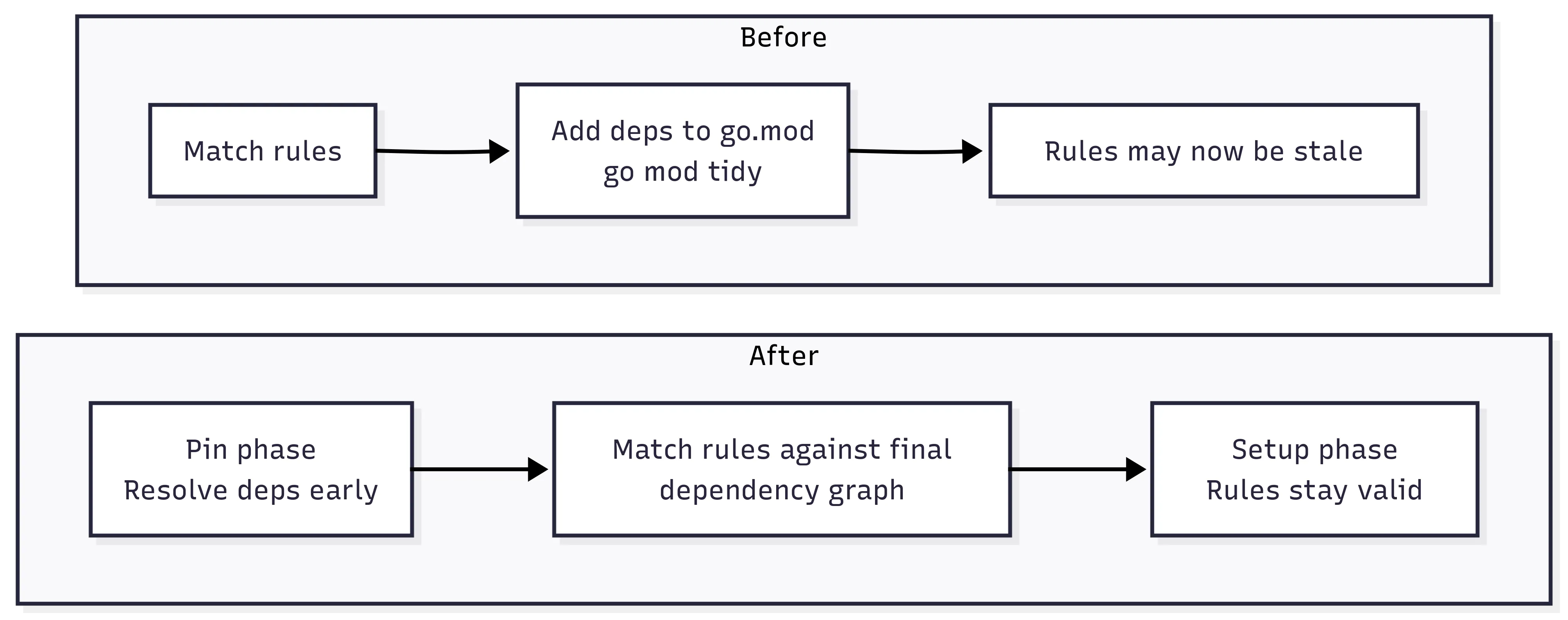

At the time, otelc’s build process matched instrumentation rules first, then added the matched instrumentation modules to go.mod and ran go mod tidy. That dependency resolution could bump the project’s gRPC version. The instrumentation rules had already been selected against the old version, though, so otelc could end up building against a dependency graph different from the one it had used to decide which rules to apply which resulted in the build failing.

My original fix was to run the setup process in multiple passes until the dependency graph stopped changing. It worked, but auto-pinning turned out to solve the same problem much more cleanly.

otelc go build now generates a temporary otel.instrumentation.go early when the user hasn’t provided one. Dependencies are resolved and added to go.mod as part of that pinning phase, before rule matching happens. By the time otelc selects instrumentation rules, it’s looking at the dependency versions that will actually be used for the build. The setup phase that follows no longer needs to modify the dependency graph, so the selected rules stay valid.

This also gives us a cleaner path toward registry-backed integration search. If otelc eventually discovers compatible instrumentations from the OpenTelemetry Ecosystem Explorer registry, the same pinning step can resolve those integrations and their dependencies before rule matching, rather than requiring the rest of the build pipeline to care where an instrumentation came from. I talk more about that idea in the registry-backed integration section below.

One rough edge that’s still open is that otelc pin currently adds replace directives pointing to local paths in go.mod, which makes checking the generated file into version control awkward. Decoupling instrumentations from the tool itself, also described below, should fix that. The initial implementation landed in #655.

What’s next

A few things I’m looking at for the rest of the mentorship:

1. Decoupling instrumentations from otelc’s embedded bundle. Right now, instrumentation packages are embedded directly into the otelc binary. That means adding a new instrumentation requires a new release of the tool, even if it’s otherwise fully compatible. Decoupling this would also let us build a proper dependency graph between instrumentations (for example, automatically pulling in a runtime/GLS instrumentation whenever the OTel SDK instrumentation is used), and would let users check reproducible otel.instrumentation.go files into their own repos without local path replaces.

2. Registry-backed integration search. Instead of only looking at the embedded bundle, otelc could look up compatible instrumentations through the OpenTelemetry Ecosystem Explorer registry, which would let third-party instrumentations get picked up automatically once published there. This is currently being researched, see this issue for the open questions around how Go compile-time instrumentations should be represented there and how otelc would consume that data.

3. Supporting .otel.yml files. Similar in spirit to otel.instrumentation.go, but without tracking dependencies in go.mod. Useful for customizing instrumentations without wanting them tracked in version control, though it won’t produce fully reproducible builds.

Acknowledgements

The work described here went through a lot of review. Thanks to Kemal Akkoyun for raising the original issue that led to import-driven instrumentation selection, and to both Kemal and Dario Castañé for reviewing the PRs linked throughout this post, including the review comment that led me to the recursive-instrumentation bug. Thanks also to everyone else in the OpenTelemetry Go Compile Instrumentation community who reviewed and discussed this work along the way.
